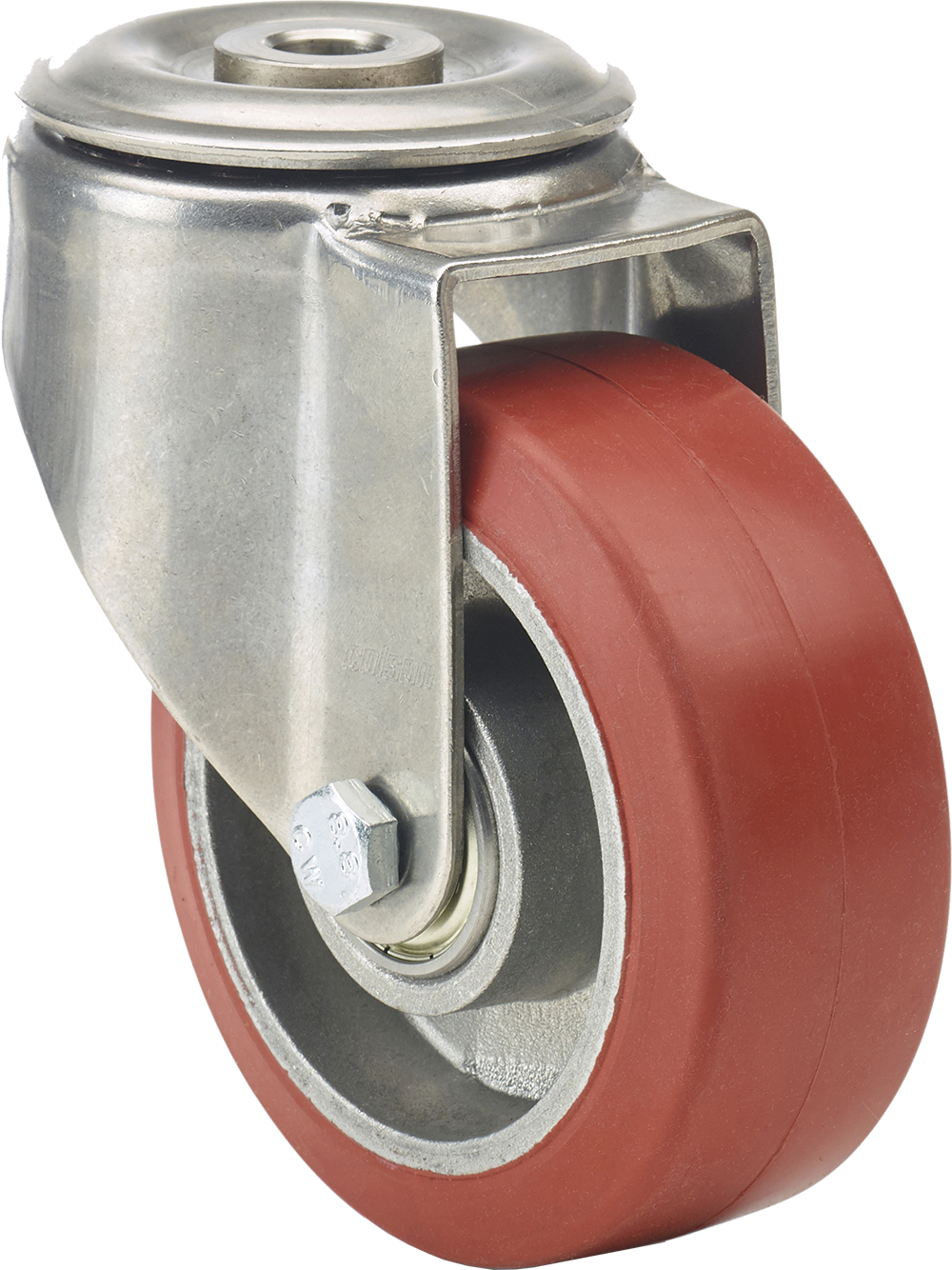

Swivel castor, 100 mm, 80 kg
Part number: JXAT 1005 6150
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Hub length | 40 mm |
| Height | 128 mm |
| Offset | 33 mm |
| Wheel axle diameter | 12 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 80 kg |
| Weight | 0.9 kg |
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race
Wheel
- High temperature rubber tyre 80° Shore A aluminium wheel centre with 2 ball bearings operating temperature from -40°C to +250°C not resistant to vegetable oils
