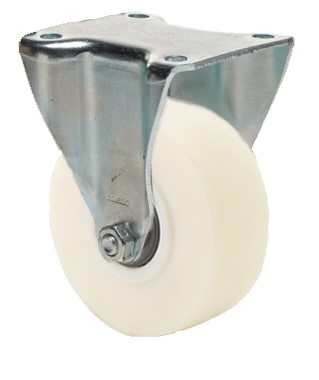

Fixed castor, 75 mm, 400 kg

Part number: FTPN 0752 6000

Technical data

Diameter	75 mm
Wheel width	36 mm
Hub length	45 mm
Height	108 mm
Offset	40 mm
Top plate dimensions	105 x 86 mm
Top plate hole diameter	9 mm
Dist. between holes	80/77 x 60 mm
Brake swivel radius	115 mm
Load capacity	400 kg
Weight	0.7 kg

Technical description

• Rigid fork of zinc-coated sheet steel with an
• extra sturdy plate (4 mm) and fork legs (3.5 mm)
• for even higher load capacity



Wheel

• Polyamide wheel with two deep groove ball bearings
