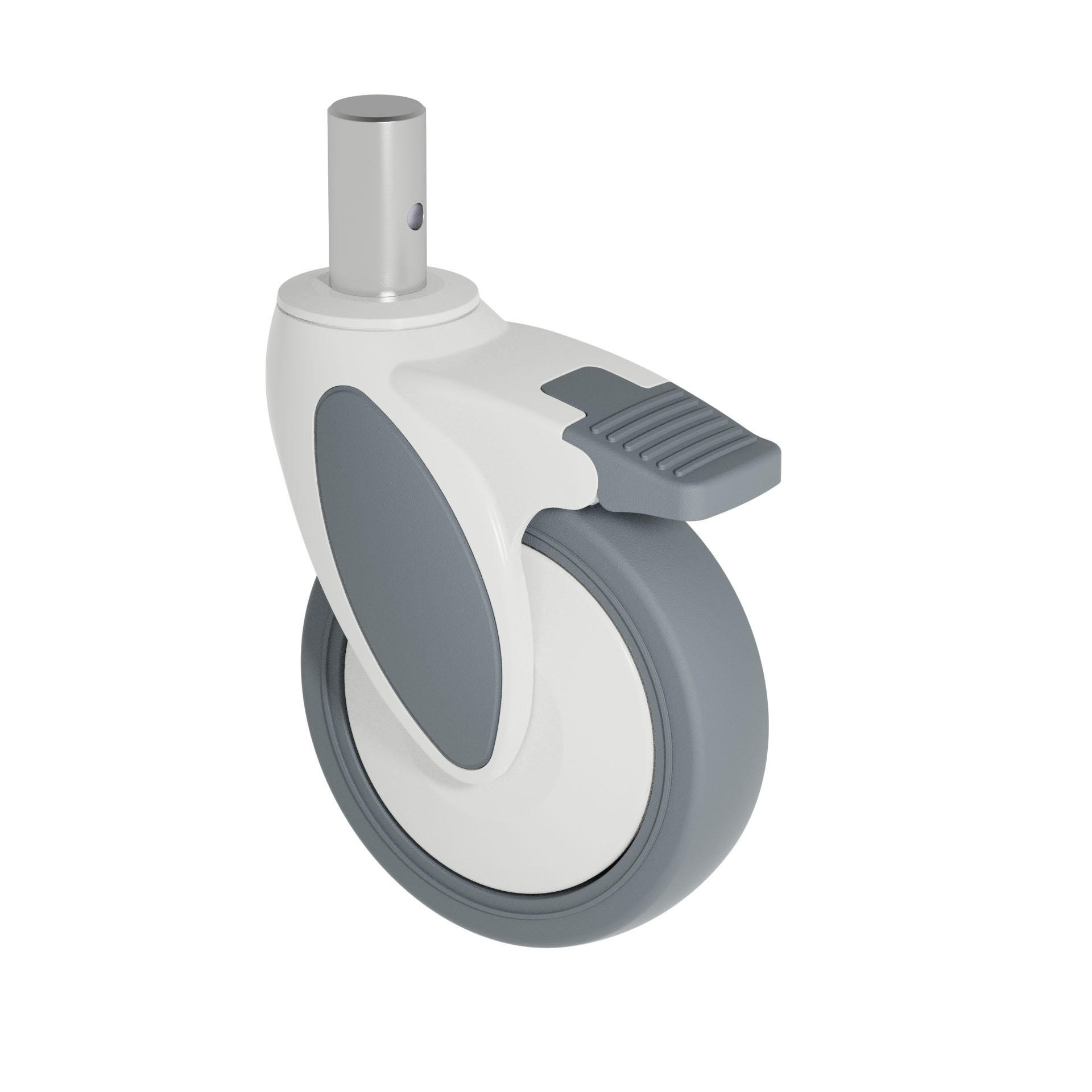

Swivel castor with total brake mounted behind, 125 mm, 100 kg
Part number: KSF2-51C-Z24X45 M8-19 V01
(VIVAX 2.0)
Technical data
| Diameter | 125 mm |
| Wheel width | 32 mm |
| Height | 161 mm |
| Offset | 46 mm |
| Stem size | 24x45 mm |
| Load capacity | 100 kg |
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
Variants
|
Diameter |
Wheel width |
Height |
Offset |
Stem size |
Load capacity |
|
125 mm |
32 mm |
161 mm |
46 mm |
24x45 mm |
100 kg |
|
125 mm |
32 mm |
161 mm |
46 mm |
28x45 mm |
100 kg |
|
125 mm |
32 mm |
164 mm |
46 mm |
32x40 mm |
100 kg |
