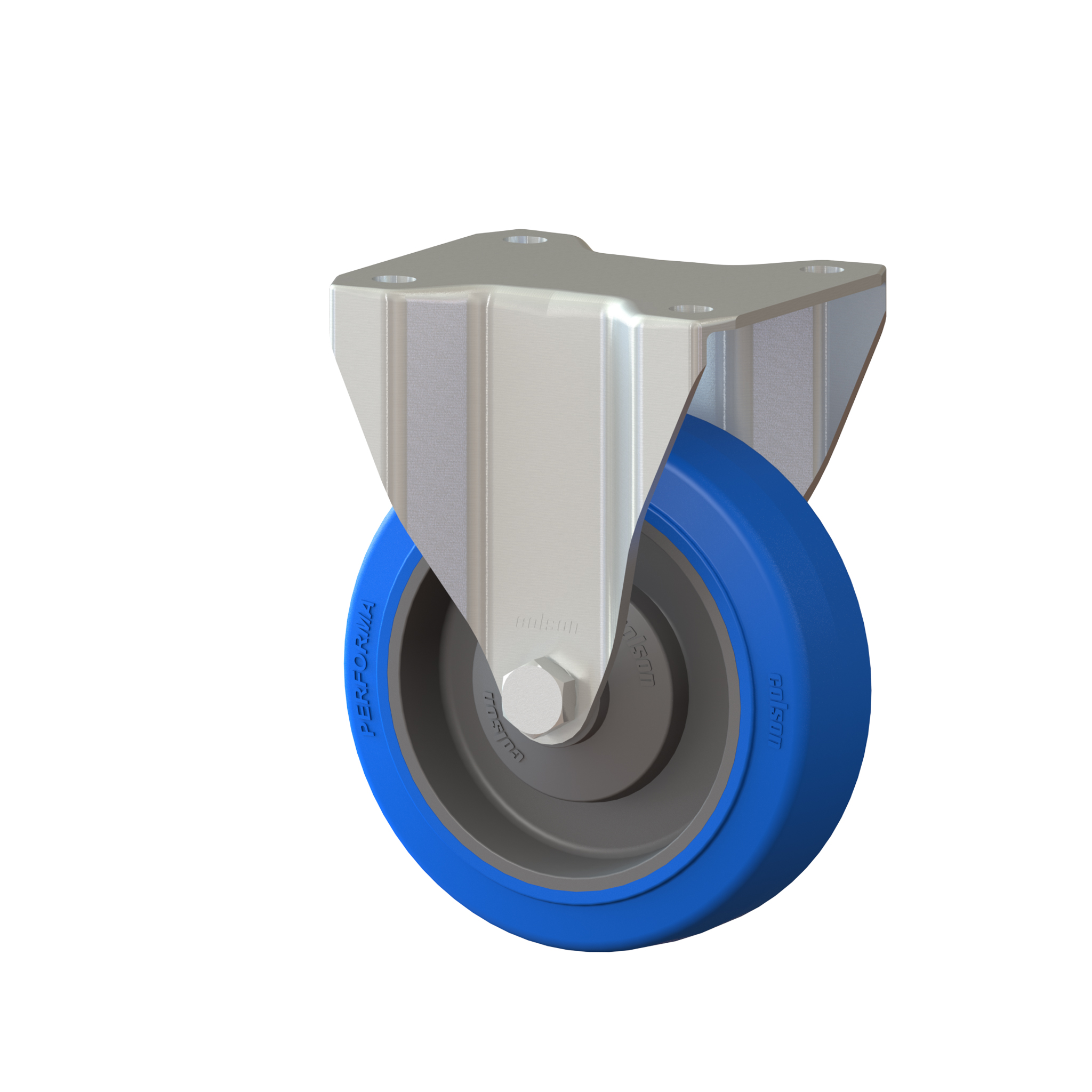

Fixed castor, 100 mm, 150 kg

Part number: FTPR 1002 5000 ECO

Technical data

Diameter	100 mm
Wheel width	32 mm
Height	130 mm
Top plate dimensions	105x86 mm
Top plate hole diameter	9 mm
Dist. between holes	80x60 mm
Load capacity	150 kg

Technical description

• pressed components made of carbon steel protected with an additional electro-galvanized zinc coating



Wheel

• dark grey polypropylene hub
• PERFORMA® tread made of
• thermoplastic elastomer in blue color with a hardness of 65 ± 5 Shore A
• single
• ball bearing
