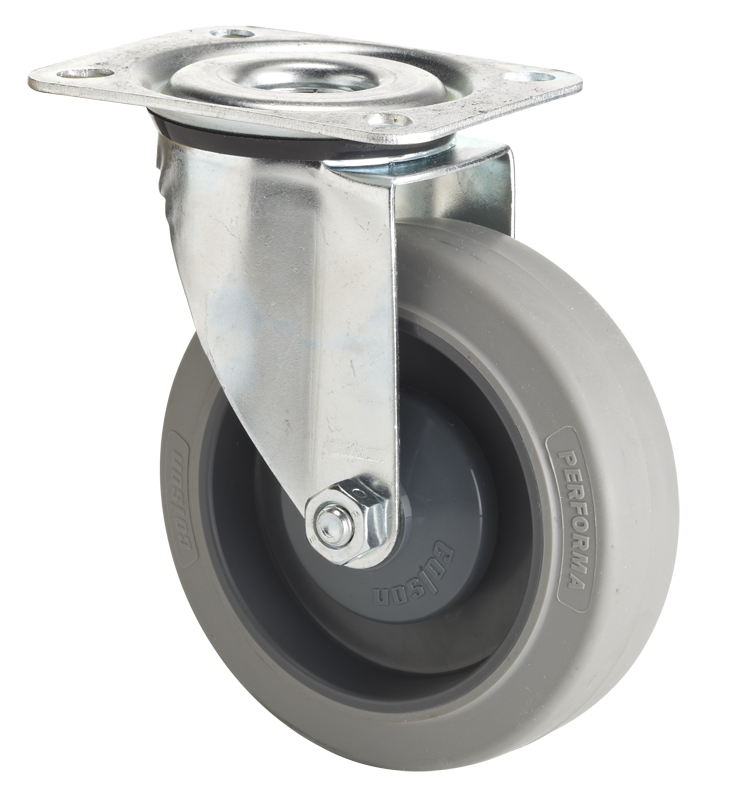

Swivel castor, 80 mm - 200 mm, 120 kg - 225 kg

Part number: JPPF 1251 5100

Technical data

Diameter 125 mm
Wheel width 32 mm
Hub length 48 mm
Height 156 mm
Offset 32 mm
Wheel axle diameter 10 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9.6 mm
Dist. between holes 80 x 60 mm
Brake swivel radius 138 mm
Load capacity 150 kg
Weight 1.2 kg

Technical description

  • Swivel fork of deep drawn zinc-coated steel,
  • swivel bearing with double ball race way
  • and sealring (excluded the bolt hole fixing plate)



Wheel

  • Dark grey Polypropyleene wheel with grey rubber tyre
  • (Performa, Shore A 65 - 70) with one deep groove ball bearing

Variants

Diameter Wheel width Hub length Height Offset Wheel axle diameter Top plate dimensions Top plate hole diameter Dist. between holes Brake swivel radius Load capacity Weight
JPPF 0801 5100 80 mm 32 mm 42 mm 105 mm 34 mm mm 105 x 85 mm 9.6 mm 80 x 60 mm 113 mm 120 kg 0.43 g
JPPF 1001 5100 100 mm 32 mm 42 mm 128 mm 34 mm 8 mm 105 x 85 mm 9.6 mm 80 x 60 mm 128 mm 150 kg 0.65 g
JPPF 1251 5100 125 mm 32 mm 48 mm 156 mm 32 mm 10 mm 105 x 85 mm 9.6 mm 80 x 60 mm 138 mm 150 kg 1.2 g
125 mm 32 mm 48 mm 156 mm 32 mm 10 mm 105 x 85 mm 9.6 mm 80 x 60 mm 138 mm 150 kg 1.2 g
JPPE 2003 5100 200 mm 40 mm 64 mm 235 mm 53 mm mm 135 x 110 mm 11 mm 105 x 75,80 mm 178 mm 225 kg 0 g
Reach compliant
