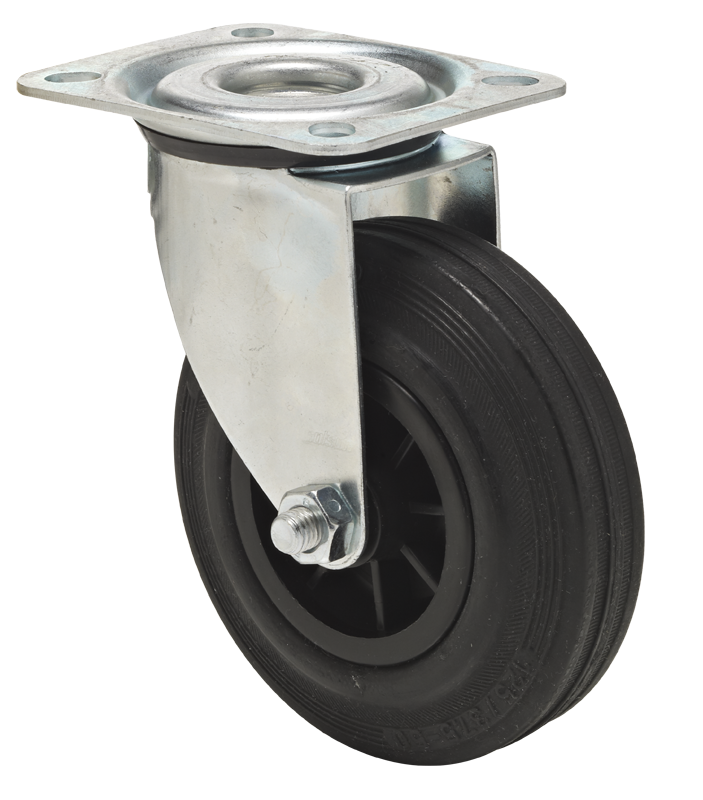

Swivel castor, 80 mm - 200 mm, 50 kg - 200 kg

Part number: JPPM 1001 2100

Technical data

Diameter 100 mm
Wheel width 30 mm
Hub length 40 mm
Height 128 mm
Offset 34 mm
Wheel axle diameter 12 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9.6 mm
Dist. between holes 80 x 60 mm
Brake swivel radius 128 mm
Load capacity 70 kg
Weight 0.9 kg

Technical description

  • Swivel fork of deep drawn zinc-coated steel,
  • swivel bearing with double ball race way
  • and sealring (excluded the bolt hole fixing plate)



Wheel

  • Polypropyleene wheel with black rubber tyre (Shore A 85) and roller bearing

Variants

Diameter Wheel width Hub length Height Offset Wheel axle diameter Top plate dimensions Top plate hole diameter Dist. between holes Brake swivel radius Load capacity Weight
JPPM 0801 2100 80 mm 25 mm 40 mm 105 mm 38 mm 12 mm 105 x 85 mm 9.6 mm 80 x 60 mm 108 mm 50 kg 0.7 g
JPPM 1001 2100 100 mm 30 mm 40 mm 128 mm 34 mm 12 mm 105 x 85 mm 9.6 mm 80 x 60 mm 128 mm 70 kg 0.9 g
JPPM 1251 2100 125 mm 37.5 mm 45 mm 156 mm 41 mm 15 mm 105 x 85 mm 9.6 mm 80 x 60 mm 138 mm 100 kg 1.2 g
160 mm mm 60 mm 195 mm 53 mm 20 mm mm mm mm mm 150 kg 2.7 g
JPPM 1603 2100 160 mm 40 mm 60 mm 195 mm 53 mm 20 mm 135 x 110 mm 11 mm 105 x 75,80 mm 178 mm 150 kg 2.5 g
JPPM 2003 2100 200 mm 50 mm 60 mm 235 mm 53 mm 20 mm 135 x 110 mm 11 mm 105 x 75,80 mm 178 mm 200 kg 3.3 g
Reach compliant
