Heavy Duty Castors
In relation to mass and weight, modern heavy industry often thinks in dimensions that are a feat of strength for people and machines. For example, take a passenger bridge for the harbour, construction machines for road building, etc. All these heavy weights need to be moved. You’ll be doing well if you deal with these tasks on super-stable heavy load castors from RHOMBUS. Because in materials quality and processing, they are the absolute master in their class. This you can depend upon.
510i 18K150v ZPS
On request
Swivel castor with total brake mounted in front 125 mm - 250 mm, 350 kg - 1000 kg
Technical data
| Diameter | 150 mm |
| Tread width | 50 mm |
| Height | 220 mm |
| Offset | 58 mm |
| Top plate dimensions | 190x110 mm |
| Top plate hole diameter | 17 mm |
| Dist. between holes | 150x75 mm |
| Load capacity | 700 kg |
Wheel
- Polyurethane tyre red-orange (Shore A 95)
- bonded on cast wheel centre
- precision ball bearing
Technical description
- heavy steel welded construction with special turntable
- zinc passivated
- pressed ball track above, with tapered roller bearing below
- grease filling and grease nipple in fork head
Areas of application
- containers
- fork lifts
- heavy transport equipment
- lifting carts
- lifting tables
- machine constructions
- road constructions
- transport containers
- transport trolleys
- winter service
525a 18K125v ZPS
On request
Swivel castor 125 mm - 250 mm, 700 kg - 1500 kg
Technical data
| Diameter | 125 mm |
| Tread width | 2x40 mm |
| Height | 192,5 mm |
| Offset | 50 mm |
| Top plate dimensions | 190x170 mm |
| Top plate hole diameter | 17 mm |
| Dist. between holes | 150x135 mm |
| Load capacity | 700 kg |
Wheel
- Polyurethane tyre red-orange (Shore A 95)
- bonded on cast wheel centre
- precision ball bearing
Technical description
- heavy steel welded construction with special turntable
- zinc passivated
- pressed ball track above, with tapered roller bearing below
- grease filling and grease nipple in fork head
Areas of application
- containers
- lifting tables
- machine constructions
- road constructions
- heavy transport equipment

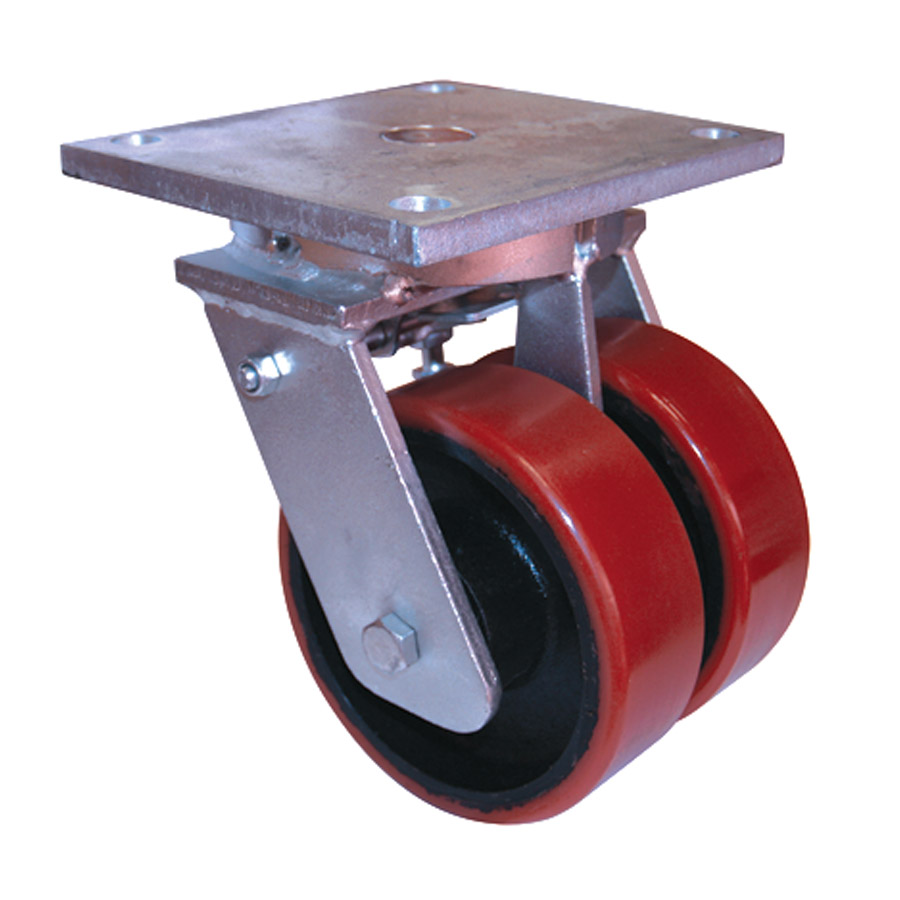

525i 18K125v ZPS
On request
Swivel castor with total brake mounted in front 125 mm - 250 mm, 700 kg - 1500 kg
Technical data
| Diameter | 125 mm |
| Tread width | 2x40 mm |
| Height | 192,5 mm |
| Offset | 50 mm |
| Top plate dimensions | 190x170 mm |
| Top plate hole diameter | 17 mm |
| Dist. between holes | 150x135 mm |
| Load capacity | 700 kg |
Wheel
- Polyurethane tyre red-orange (Shore A 95)
- bonded on cast wheel centre
- precision ball bearing
Technical description
- heavy steel welded construction with special turntable
- zinc passivated
- pressed ball track above, with tapered roller bearing below
- grease filling and grease nipple in fork head
Areas of application
- containers
- lifting tables
- machine constructions
- road constructions
- heavy transport equipment
526a 18K125v ZPS
On request
Fixed castor 125 mm - 250 mm, 700 kg - 1500 kg
Technical data
| Diameter | 125 mm |
| Tread width | 2x40 mm |
| Height | 192,5 mm |
| Top plate dimensions | 190x170 mm |
| Top plate hole diameter | 17 mm |
| Dist. between holes | 150x135 mm |
| Load capacity | 700 kg |
Wheel
- Polyurethane tyre red-orange (Shore A 95)
- bonded on cast wheel centre
- precision ball bearing
Technical description
- heavy steel welded construction
- zinc passivated
Areas of application
- containers
- fork lift trucks
- fork lifts
- lift tables
- machine constructions
FCCN 0803 6102
Fixed castor 80 mm - 140 mm, 200 kg - 500 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 30 mm |
| Hub length | 36 mm |
| Height | 85 mm |
| Top plate dimensions | 110 x 75 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 85 x 50 mm |
| Load capacity | 200 kg |
| Weight | 1.5 kg |
Wheel
- Cast iron wheel with two deep groove ball bearings
Technical description
- Rigid fork out of cast iron GG 20
FCCV 0803 6101
Fixed castor 80 mm - 140 mm, 200 kg - 500 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 30 mm |
| Hub length | 36 mm |
| Height | 85 mm |
| Top plate dimensions | 110 x 75 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 95 x 60 mm |
| Load capacity | 200 kg |
| Weight | 1.3 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
Technical description
- Rigid fork out of cast iron GG 20
FCTB 0803 6101
Fixed castor 80 mm, 85 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 30 mm |
| Hub length | 36 mm |
| Height | 85 mm |
| Top plate dimensions | 110 x 75 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 85 x 50 mm |
| Load capacity | 85 kg |
| Weight | 1.1 kg |
Wheel
- Glass fibre reinforced polyamide hub, with fully elastic black rubber tyre
- (Shore A 65) and two deep groove ball bearings
Technical description
- Rigid fork out of cast iron GG 20
FCTB 1003 6151
Fixed castor 100 mm - 140 mm, 140 kg - 300 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Hub length | 46 mm |
| Height | 105 mm |
| Top plate dimensions | 125 x 90 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 95 x 60 mm |
| Load capacity | 140 kg |
| Weight | 1.8 kg |
Wheel
- Glass fibre reinforced polyamide hub, with fully elastic black rubber tyre
- (Shore A 65) and two deep groove ball bearings
Technical description
- Rigid fork out of cast iron GG 20
FWPN 0823 6080
Fixed castor 82 mm - 85 mm, 750 kg - 800 kg
Technical data
| Diameter | 82 mm |
| Wheel width | 80 mm |
| Height | 133 mm |
| Offset | 68 mm |
| Top plate dimensions | 135x110 mm |
| Top plate hole diameter | 13 mm |
| Dist. between holes | 105x80 mm |
| Load capacity | 750 kg |
Wheel
- heavy-duty nylon low height castors
Technical description
- Heavy duty swivel fork for dual wheels, in extra thick pressed and welded steel. With a tapered roller bearing in the swivel head, black lacquered.
FWSU 0753 6075
Fixed castor 75 mm - 85 mm, 690 kg - 1000 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 75 mm |
| Height | 130 mm |
| Offset | 68 mm |
| Top plate dimensions | 135x110 mm |
| Top plate hole diameter | 13 mm |
| Dist. between holes | 105x80 mm |
| Load capacity | 690 kg |
Wheel
- heavy-duty polyurethane low height castors
Technical description
- Heavy duty rigid fork for dual wheels, in extra thick pressed and welded steel. Black lacquered.
