Transport Appliance Castors
The global world of networking is shaping new demands on logistics and the transport business. Mobility is being understood in a new way. Not only across national borders, but in the internal flow of goods. Castors from RHOMBUS are solid and reliable components within this agile cycle. They move trolleys, workbenches, switch cabinets, cleaning equipment and other mobile facilities – and have just one goal in the process: to guarantee quality – forever.
JSCP 1603 6443/B

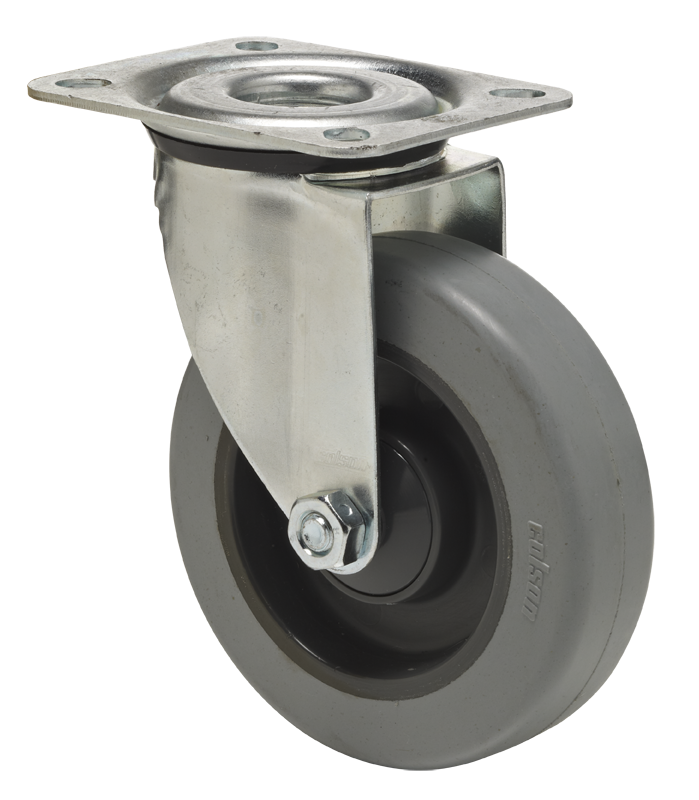

Swivel castor with wheel locking brake 160 mm - 250 mm, 285 kg - 445 kg
Technical data
| Diameter | 160 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 195 mm |
| Offset | 55 mm |
| Wheel axle diameter | 20 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 285 kg |
| Weight | 4.6 kg |
Wheel
- Cast iron wheel with pressed-on full-elastic rubber tyre
- (Shore A 68) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel with wheel brake. Swivelhead with sealed precision
- ball bearing and a grease nippel
