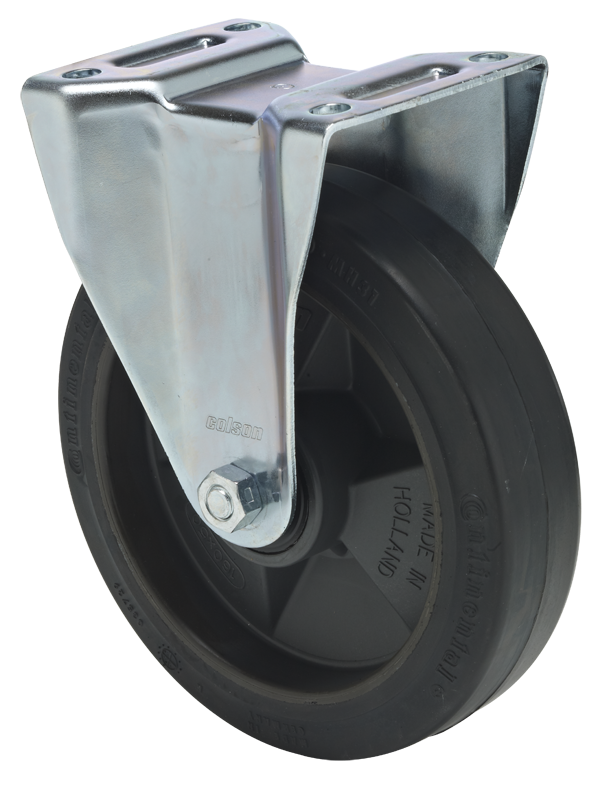

Fixed castor 80 mm - 125 mm, 150 kg - 200 kg

Technical data

Diameter 80 mm
Wheel width 35 mm
Hub length 45 mm
Height 110 mm
Offset 35 mm
Wheel axle diameter 8 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9 mm
Dist. between holes 80 x 60 mm
Brake swivel radius 120 mm
Load capacity 150 kg
Weight 0.7 kg
Reach compliant Rohs compliant

Wheel

  • Glass fibre reinforced polyamide wheel with black rubber tyre
  • (Shore A 65) with one deep groove ball bearing

Technical description

  • Rigid fork of zinc-coated sheet steel

Fixed castor 100 mm - 250 mm, 150 kg - 475 kg

Technical data

Diameter 100 mm
Wheel width 40 mm
Hub length 45 mm
Height 130 mm
Offset 40 mm
Wheel axle diameter 12 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9 mm
Dist. between holes 80 x 60 mm
Brake swivel radius 120 mm
Load capacity 150 kg
Weight 0.8 kg
Reach compliant Rohs compliant

Wheel

  • Glass fibre reinforced polyamide wheel with black rubber tyre
  • (Shore A 65) with two deep groove ball bearings

Technical description

  • Rigid fork of zinc-coated sheet steel

Fixed castor 80 mm - 125 mm, 150 kg - 200 kg

Technical data

Diameter 80 mm
Wheel width 35 mm
Hub length 45 mm
Height 110 mm
Offset 35 mm
Wheel axle diameter 8 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9 mm
Dist. between holes 80 x 60 mm
Brake swivel radius 120 mm
Load capacity 150 kg
Weight 0.7 kg
Reach compliant Rohs compliant

Wheel

  • Glass fibre reinforced polyamide wheel with grey rubber tyre
  • (Shore A 65) with one deep groove ball bearing

Technical description

  • Rigid fork of zinc-coated sheet steel

Fixed castor 100 mm - 250 mm, 150 kg - 475 kg

Technical data

Diameter 100 mm
Wheel width 40 mm
Hub length 45 mm
Height 130 mm
Offset 40 mm
Wheel axle diameter 12 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9 mm
Dist. between holes 80 x 60 mm
Brake swivel radius 120 mm
Load capacity 150 kg
Weight 0.8 kg
Reach compliant Rohs compliant

Wheel

  • Glass fibre reinforced polyamide wheel with grey rubber tyre
  • (Shore A 65) with two deep groove ball bearings

Technical description

  • Rigid fork of zinc-coated sheet steel

Fixed castor 80 mm - 200 mm, 175 kg - 650 kg

Technical data

Diameter 80 mm
Wheel width 28 mm
Hub length 45 mm
Height 110 mm
Offset 35 mm
Wheel axle diameter 15 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9 mm
Dist. between holes 80 x 60 mm
Brake swivel radius 120 mm
Load capacity 175 kg
Weight 0.7 kg
Reach compliant Rohs compliant

Wheel

  • Glass fibre reinforced polyamide wheel

Technical description

  • Rigid fork of zinc-coated sheet steel

Fixed castor 80 mm - 125 mm, 110 kg - 240 kg

Technical data

Diameter 80 mm
Wheel width 40 mm
Hub length 45 mm
Height 110 mm
Offset 35 mm
Wheel axle diameter 15 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9 mm
Dist. between holes 80 x 60 mm
Brake swivel radius 120 mm
Load capacity 110 kg
Weight 0.8 kg
Reach compliant Rohs compliant

Wheel

  • Glass fibre reinforced polyamide hub, with fully elastic black rubber tyre
  • (Shore A 65) and two deep groove ball bearings

Technical description

  • Rigid fork of zinc-coated sheet steel

Fixed castor 100 mm - 300 mm, 250 kg - 1800 kg

Technical data

Diameter 100 mm
Wheel width 30 mm
Height 150 mm
Offset 36 mm
Top plate dimensions 100x85 mm
Top plate hole diameter 11 mm
Dist. between holes 80x60 mm
Load capacity 250 kg
Reach compliant Rohs compliant

Wheel

  • Cast iron wheel with bonded-on polyurethane tyre (Shore A 92) with two taper roller bearings

Technical description

  • Heavy duty rigid fork for dual wheels, in extra thick pressed and welded steel. Black lacquered.

Fixed castor 125 mm - 500 mm, 600 kg - 7000 kg

Technical data

Diameter 125 mm
Wheel width 2x30 mm
Height 197 mm
Offset 60 mm
Top plate dimensions 170x170 mm
Top plate hole diameter 13 mm
Dist. between holes 130x130 mm
Load capacity 600 kg
Reach compliant Rohs compliant

Wheel

  • Cast iron wheel with bonded-on polyurethane tyre (Shore A 92) with two taper roller bearings

Technical description

  • Heavy duty swivel fork for dual wheels, in extra thick pressed and welded steel. With total lock brake and a tapered roller bearing in the swivel head. Black lacquered.

Fixed castor 80 mm - 200 mm, 200 kg - 600 kg

Technical data

Diameter 80 mm
Wheel width 32 mm
Hub length 45 mm
Height 111 mm
Offset 40 mm
Wheel axle diameter 8 mm
Top plate dimensions 105x86 mm
Top plate hole diameter 9 mm
Dist. between holes 80/77x60 mm
Load capacity 200 kg
Reach compliant Rohs compliant

Wheel

  • Polyamide wheel with one sealed stainless steel
  • deep groove ball bearing

Technical description

  • Heavy duty rigid fork of stainless steel
FZCU 3006 6TR0

Fixed castor 300 mm, 2270 kg

Technical data

Diameter 300 mm
Wheel width 76 mm
Hub length 92 mm
Height 422 mm
Offset 72 mm
Wheel axle diameter 31.8 mm
Top plate dimensions 178 x 153 mm
Top plate hole diameter 16.5 mm
Dist. between holes 127 x 102 mm
Load capacity 2270 kg
Weight 25.7 kg
Reach compliant Rohs compliant

Wheel

  • Cast iron wheel with bonded-on polyurethane tyre (Shore A 92) with two taper roller bearings
