Swivel castor with total brake mounted behind 80 mm - 125 mm, 50 kg - 120 kg

Technical data

Diameter 80 mm
Wheel width 25 mm
Hub length 40 mm
Height 103 mm
Offset 38 mm
Wheel axle diameter 12 mm
Bolt hole diameter 12.3 mm
Brake swivel radius 108 mm
Load capacity 50 kg
Weight 0.9 kg
Reach compliant Rohs compliant

Wheel

  • Pressed sheetsteel wheel with black rubber tyre
  • (Shore A 85) and roller bearing

Technical description

  • Swivel fork of deep drawn zinc-coated steel,
  • swivel bearing with double ball race way and sealring (excluded the bolt hole fixing plate) with a total lock brake

Swivel castor with total brake mounted behind 80 mm - 125 mm, 150 kg

Technical data

Diameter 80 mm
Wheel width 35 mm
Hub length 42 mm
Height 105 mm
Offset 38 mm
Bolt hole diameter 12 mm
Brake swivel radius 111 mm
Load capacity 150 kg
Weight 0.9 kg
Reach compliant Rohs compliant

Wheel

  • Polyamide wheel with polyurethane tyre
  • (80° Shore A) with one deep groove stainless steel ball bearing

Technical description

  • Swivel fork of deep drawn stainless steel
  • Swivel bearing with double ball race and sealring
  • with a total lock brake
FPAB 1603 6440

Fixed castor 160 mm - 200 mm, 250 kg

Technical data

Diameter 160 mm
Wheel width 50 mm
Hub length 62 mm
Height 195 mm
Top plate dimensions 140 x 110 mm
Top plate hole diameter 10.5 mm
Dist. between holes 105 x 75,80 mm
Load capacity 250 kg
Weight 2.2 kg
Reach compliant Rohs compliant

Wheel

  • Aluminium wheels with black rubber tyre (Shore A 72) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C

Technical description

  • Rigid fork of zinc-coated sheet steel
FPAU 1603 6440

Fixed castor 160 mm - 200 mm, 250 kg

Technical data

Diameter 160 mm
Wheel width 50 mm
Hub length 62 mm
Height 195 mm
Top plate dimensions 140 x 110 mm
Top plate hole diameter 10.5 mm
Dist. between holes 105 x 75,80 mm
Load capacity 250 kg
Weight 2 kg
Reach compliant Rohs compliant

Wheel

  • Aluminium wheels with bonded-on polyurethane tyre (Shore A 92) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C

Technical description

  • Rigid fork of zinc-coated sheet steel

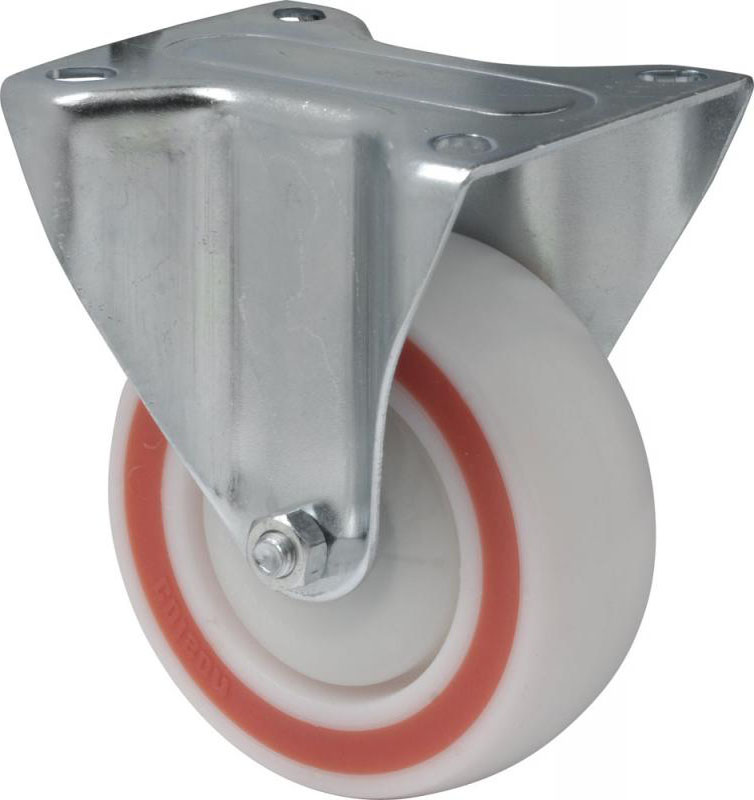

FPCO 1001 5000

Fixed castor 100 mm - 125 mm, 150 kg

Technical data

Diameter 100 mm
Wheel width 35 mm
Hub length 42 mm
Height 128 mm
Wheel axle diameter 8 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9.6 mm
Dist. between holes 80 x 60 mm
Brake swivel radius 128 mm
Load capacity 150 kg
Weight 0.7 kg
Reach compliant Rohs compliant

Wheel

  • Composite wheel polypropylene with red noise-reducing
  • thermoplastic rubber infill with one deep groove ball bearing

Technical description

  • Rigid fork of zinc-coated sheet steel

Fixed castor 80 mm - 125 mm, 150 kg

Technical data

Diameter 80 mm
Wheel width 35 mm
Hub length 42 mm
Height 105 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9.6 mm
Dist. between holes 80 x 60 mm
Load capacity 150 kg
Weight 0.7 kg
Reach compliant Rohs compliant

Wheel

  • Polyamide wheel with blue rubber tyre
  • (Shore A 70) with one deep groove ball bearing

Technical description

  • Rigid fork of zinc-coated sheet steel
FPPB 1001 2000

Fixed castor 100 mm, 150 kg

Technical data

Diameter 100 mm
Wheel width 35 mm
Hub length 40 mm
Height 128 mm
Wheel axle diameter 12 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9.6 mm
Dist. between holes 80 x 60 mm
Brake swivel radius 128 mm
Load capacity 150 kg
Weight 0.5 kg
Reach compliant Rohs compliant

Wheel

  • Polyamide wheel with blue rubber tyre
  • (Shore A 70) with roller bearing

Technical description

  • Rigid fork of zinc-coated sheet steel

Fixed castor 100 mm - 200 mm, 150 kg - 220 kg

Technical data

Diameter 100 mm
Wheel width 35 mm
Hub length 40 mm
Height 128 mm
Wheel axle diameter 12 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9.6 mm
Dist. between holes 80 x 60 mm
Brake swivel radius 128 mm
Load capacity 150 kg
Weight 0.6 kg
Reach compliant Rohs compliant

Wheel

  • Polyamide wheel with blue rubber tyre
  • (Shore A 70) with roller bearing

Technical description

  • Rigid fork of zinc-coated sheet steel

Fixed castor 125 mm - 200 mm, 150 kg - 220 kg

Technical data

Diameter 125 mm
Wheel width 35 mm
Hub length 45 mm
Height 156 mm
Wheel axle diameter 15 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9.6 mm
Dist. between holes 80 x 60 mm
Brake swivel radius 138 mm
Load capacity 150 kg
Weight 1 kg
Reach compliant Rohs compliant

Wheel

  • Polyamide wheel with blue rubber tyre
  • (Shore A 70) with roller bearing

Technical description

  • Rigid fork of zinc-coated sheet steel

Fixed castor 80 mm - 125 mm, 80 kg - 150 kg

Technical data

Diameter 80 mm
Wheel width 32 mm
Hub length 42 mm
Height 105 mm
Top plate dimensions 105 x 85 mm
Top plate hole diameter 9.6 mm
Dist. between holes 80 x 60 mm
Load capacity 80 kg
Weight 0.38 kg
Reach compliant Rohs compliant

Wheel

  • Dark grey Polypropyleene wheel with grey antistatic rubber tyre
  • (Performa, Shore A 65 - 70) with one stainless steel deep groove ball bearing

Technical description

  • Rigid fork of zinc-coated sheet steel
