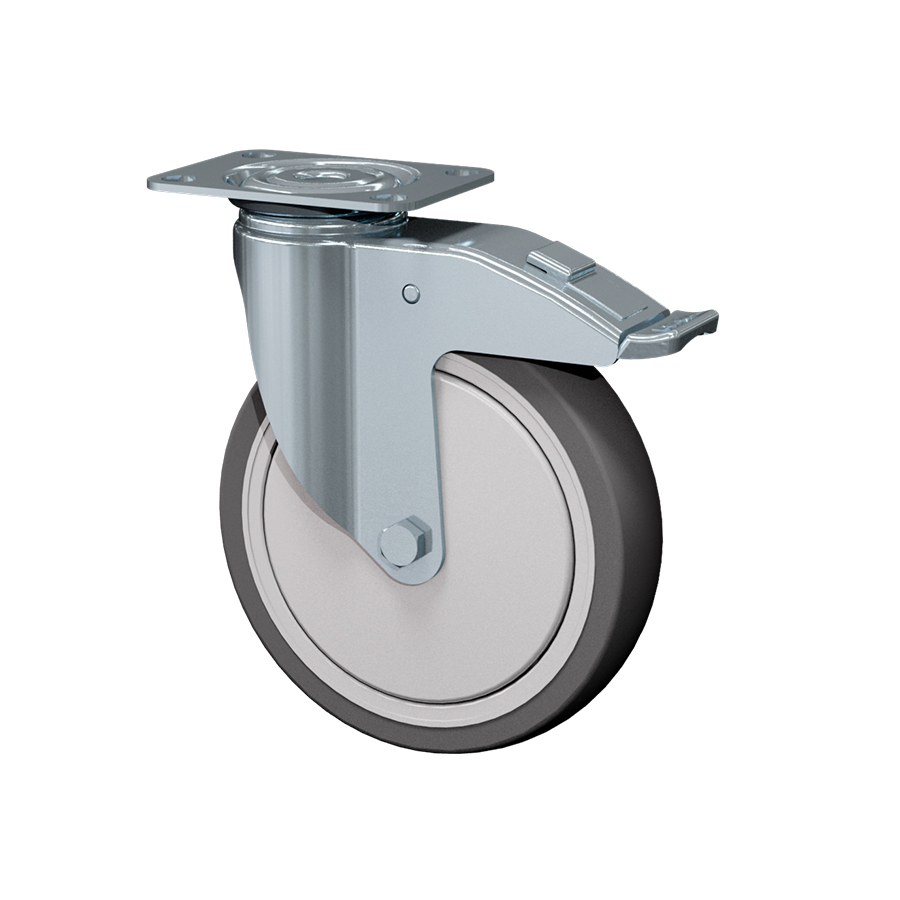

GSF-61C-P95 (Serie/s GS)
Swivel castor with total brake mounted behind 100 mm - 150 mm, 100 kg - 120 kg
Technical data
| Diameter | 150 mm |
| Tread width | 32 mm |
| Hub length | 36 mm |
| Height | 185 mm |
| Offset | 36 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 75x50/72x52 mm |
| Brake swivel radius | 132 mm |
| Load capacity | 120 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment
