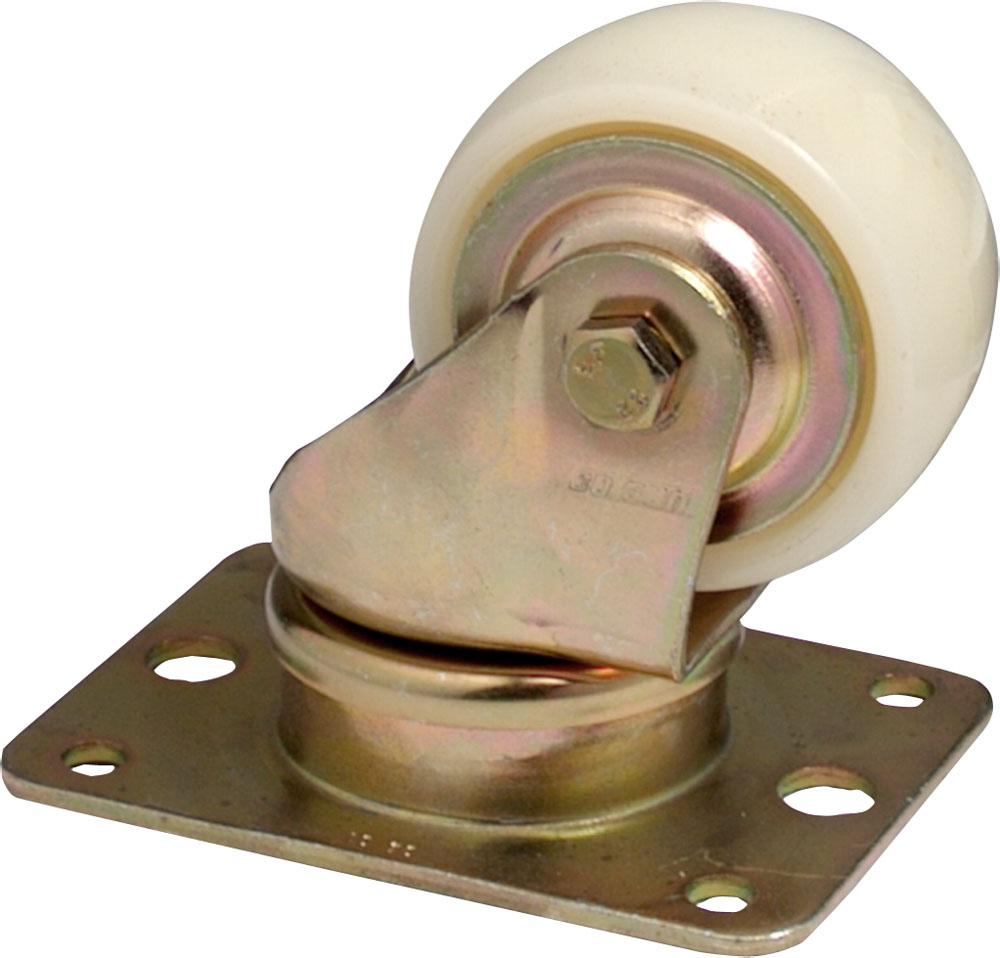

JBPN 070-CC1/A-R
Swivel castor 58 mm - 70 mm, 250 kg
Technical data
| Diameter | 70 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 102 mm |
| Offset | 25 mm |
| Top plate dimensions | 100 x 80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 85.9 x 60.5 mm |
| Brake swivel radius | 60 mm |
| Load capacity | 250 kg |
| Weight | 0.86 kg |
Wheel
- Engineered Polyamide wheel with one sealed deep groove ball bearing
Technical description
- Swivel fork with sealed deep groove ball bearing operating temperatures from -30°C to + 80°C

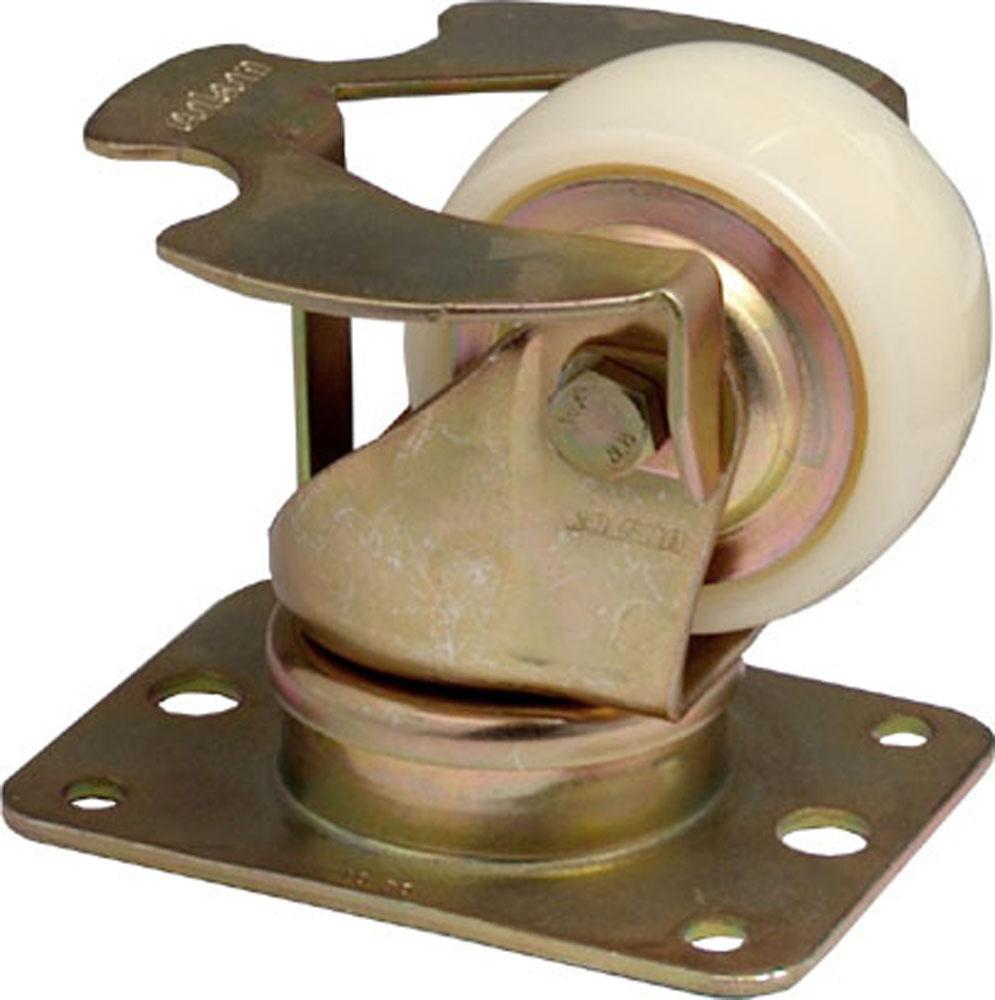

JBPN 070-CC1/A-RT12,7
Swivel castor 58 mm - 70 mm, 250 kg
Technical data
| Diameter | 70 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 102 mm |
| Offset | 25 mm |
| Top plate dimensions | 111 x 80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 85.9 x 60.5 mm |
| Brake swivel radius | 60 mm |
| Load capacity | 250 kg |
| Weight | 1.03 kg |
Wheel
- Engineered Polyamide wheel with one sealed deep groove ball bearing
Technical description
- Swivel fork with sealed deep groove ball bearing operating temperatures from -30°C to + 80°C
JBPN 070-CC1/A-RT18,7
Swivel castor 58 mm - 70 mm, 250 kg
Technical data
| Diameter | 70 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 102 mm |
| Offset | 25 mm |
| Top plate dimensions | 111 x 80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 85.9 x 60.5 mm |
| Brake swivel radius | 60 mm |
| Load capacity | 250 kg |
| Weight | 1.03 kg |
Wheel
- Engineered Polyamide wheel with one sealed deep groove ball bearing
Technical description
- Swivel fork with sealed deep groove ball bearing operating temperatures from -30°C to + 80°C
