WHCK 200/9
Wheel 80 mm - 220 mm, 250 kg - 800 kg
Technical data
| Diameter | 200 mm |
| Diameter with flange | 235 mm |
| Hub length | 49 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 750 kg |
| Weight | 4.4 kg |

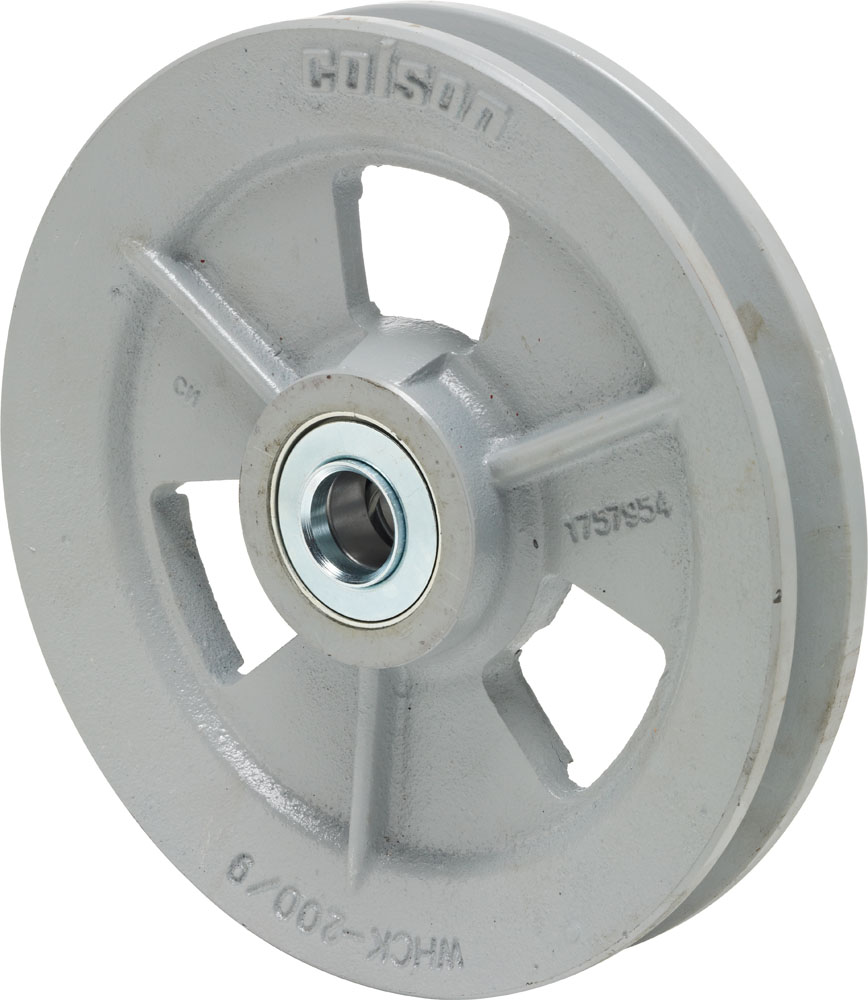

Wheel
- Rope sheave
- cast iron with dimensions accordancing DIN 15061
- With two deep groove ball bearings 6205
Technical description
- Suitable for cable diameters up to 9 mm
