WHCK 220
Wheel 80 mm - 220 mm, 250 kg - 800 kg
Technical data
| Diameter | 220 mm |
| Diameter with flange | 260 mm |
| Hub length | 49 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 800 kg |
| Weight | 6 kg |

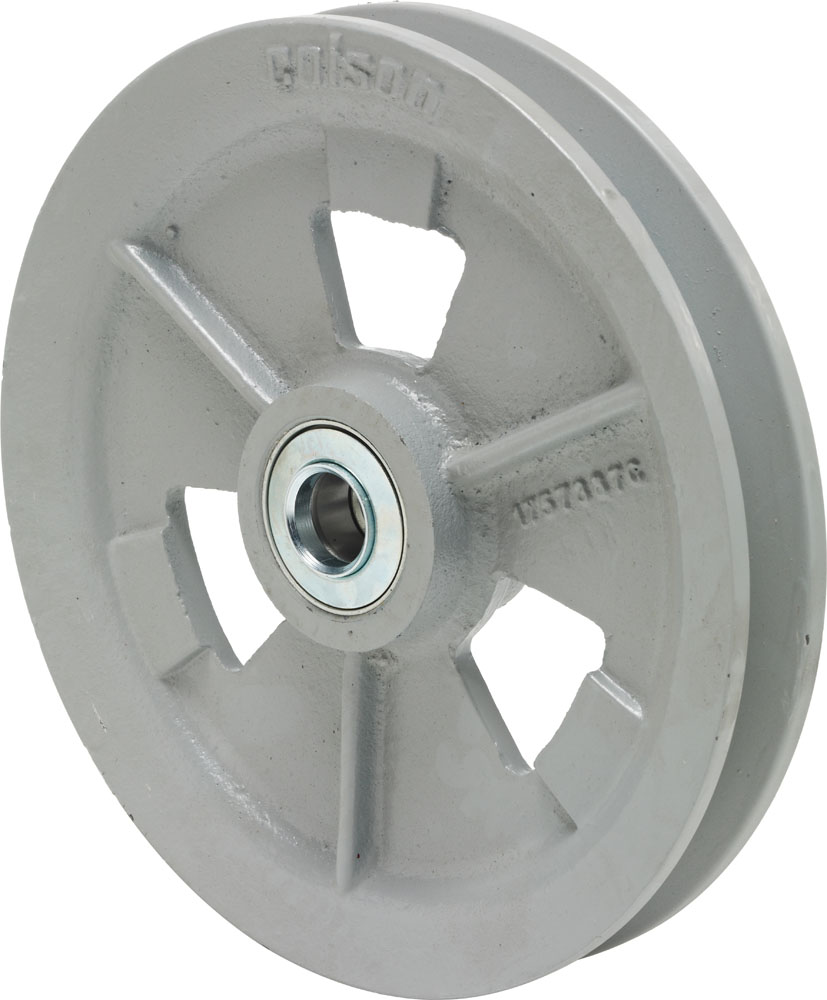

Wheel
- Rope sheave
- cast iron with dimensions accordancing DIN 15061
- With two deep groove ball bearings 6205
Technical description
- Suitable for cable diameters up to 11 mm
