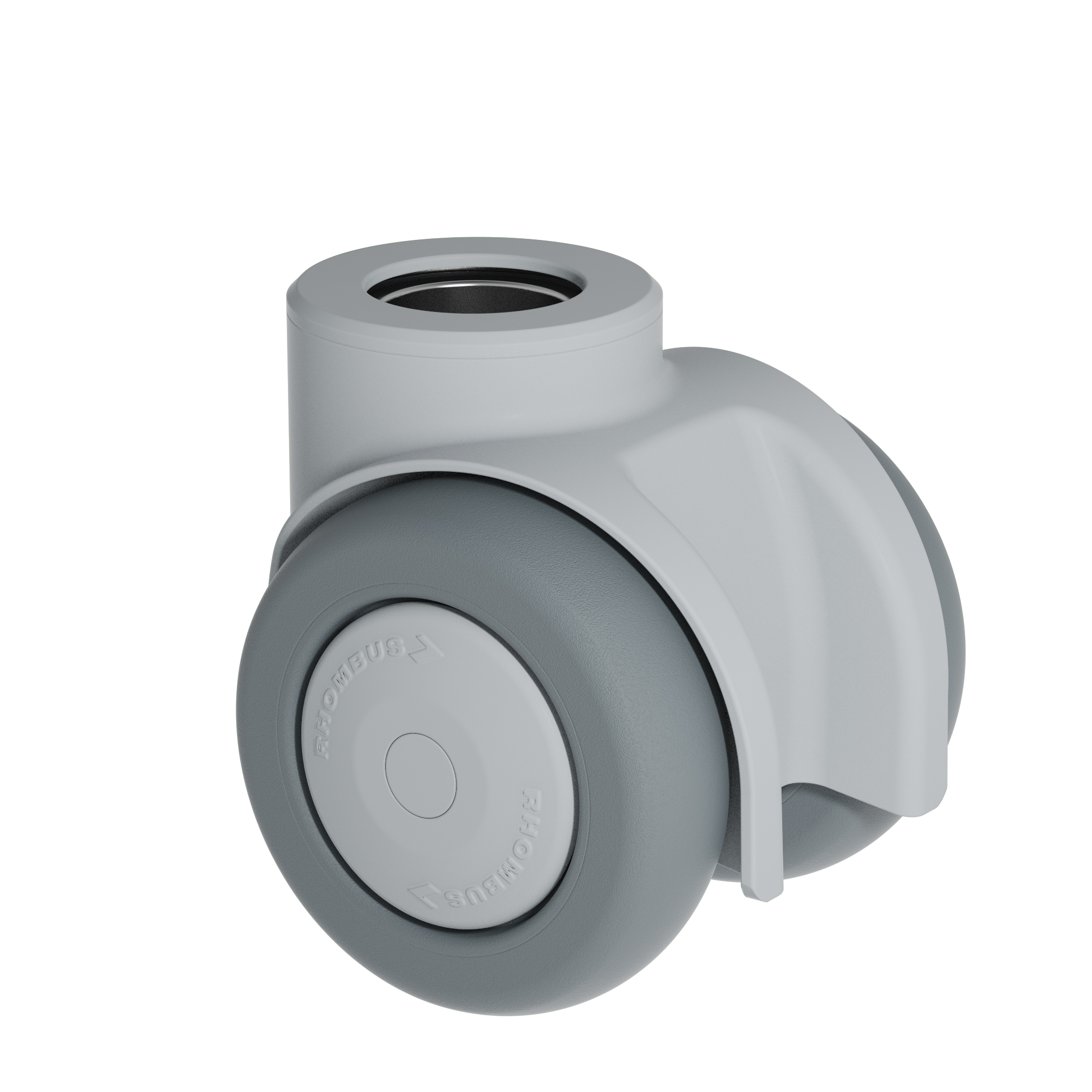

Swivel castor, 100 mm, 250 kg

Part number: 403a 29K100y K00-2

Technical data

Diameter 100 mm
Tread width 2x30 mm
Height 126 (132,5/144,5) mm
Offset 30 mm
Stem size 32 mm
Brake swivel radius 95 mm
Load capacity 250 kg

Hints for attachment:
The castor is installed by using a hydraulic system to be ordered separately.

For more detailed information, please click here:
Cooperation partner: Hörbiger

Technical description

  • Plunger lock castor series 403
  • Plastic twin wheel castor
  • Precision ball bearings in swivel section and wheel



Wheel

  • TPU-wheels (Shore A 95)
  • electrically conductive

Areas of application

  • Medical equipment, for example OP-tables
