Stainless Steel Castors
In the age of high technology the latest hygiene regulations shape the climate in laboratories for biotechnology, medicine and food research. Cleanliness is an essential part of quality management. Stainless steel castors from RHOMBUS are dazzling with their outstanding properties for this kind of environment. Produced from high-quality pure steel and precisely manufactured, they bring sterilising and instrument cabinets and other mobile units safe and clean to their destination.

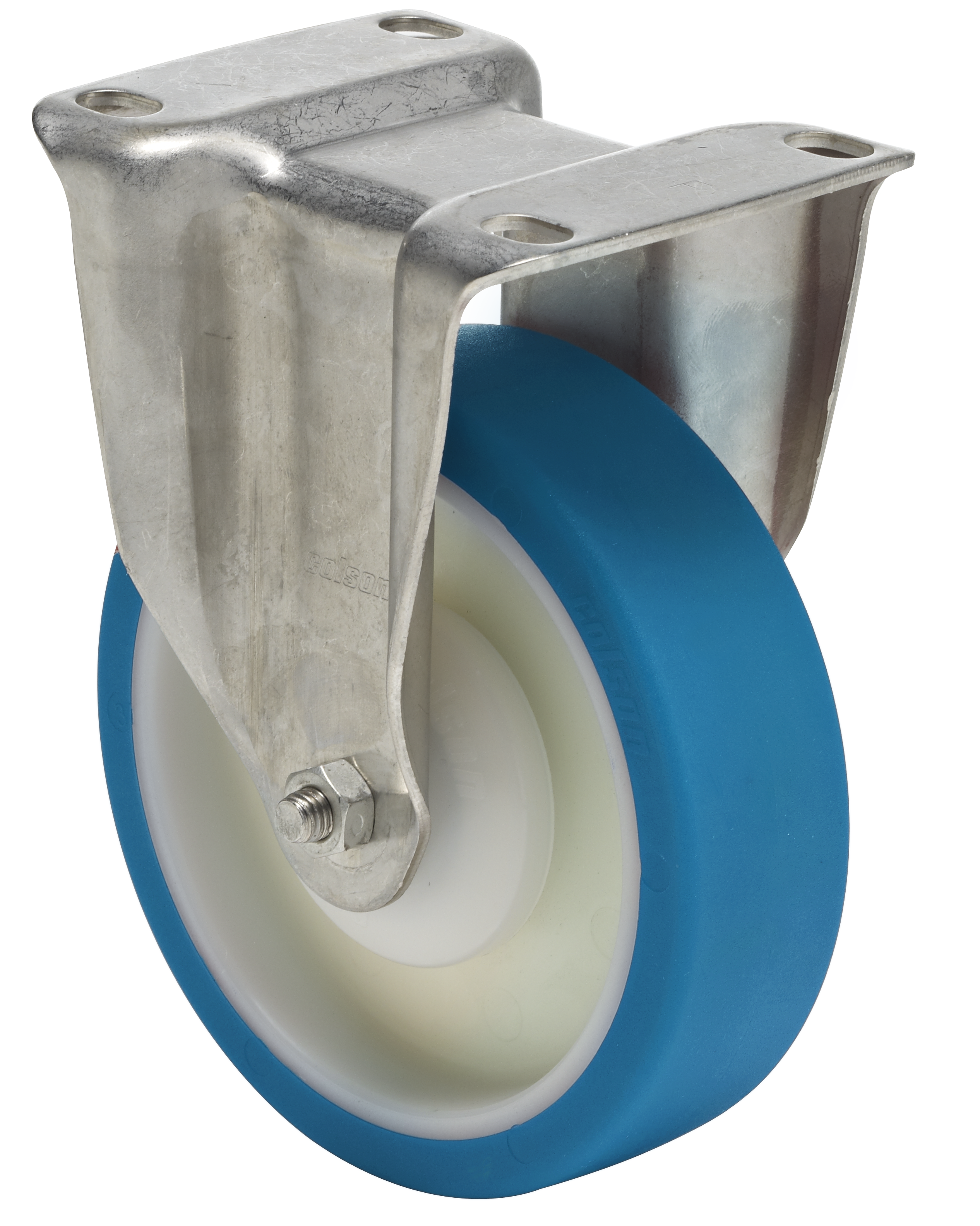

FXPU 1002 7000 BLUE
Fixed castor 80 mm - 125 mm, 150 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 130 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 200 kg |
| Weight | 0.7 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (80° Shore A) with one deep groove stainless steel ball bearing
Technical description
- Rigid fork of stainless steel
FXRG 0802 5000
Fixed castor 80 mm, 150 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Wheel axle diameter | 8 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 150 kg |
| Weight | 0.7 kg |
Wheel
- Glass fibre reinforced polyamide wheel with grey rubber tyre
- (Shore A 65) with one deep groove ball bearing
Technical description
- Rigid fork of stainless steel
FXRG 1002 6123
Fixed castor 100 mm - 200 mm, 150 kg - 380 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 150 kg |
| Weight | 0.8 kg |
Wheel
- Glass fibre reinforced polyamide wheel with grey rubber tyre
- (Shore A 65) with two deep groove ball bearings
Technical description
- Rigid fork of stainless steel
FXRN 0803 6153
Fixed castor 80 mm - 200 mm, 175 kg - 500 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 28 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 175 kg |
| Weight | 0.6 kg |
Wheel
- Glass fibre reinforced polyamide wheel
Technical description
- Rigid fork of stainless steel
JXPA 0802 5000
Swivel castor 80 mm - 125 mm, 180 kg - 250 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Wheel axle diameter | 8 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 180 kg |
| Weight | 0.9 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 92) and one deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel. Swivelhead with
- sealed precision ball bearing, grease nippel and O-ring seal.
- In case of extreme conditions (like frequent jet cleaning) maintenance
- by relubrication is necessary
JXPA 0802 5000/B
Swivel castor with wheel locking brake 80 mm - 125 mm, 180 kg - 250 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Wheel axle diameter | 8 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 180 kg |
| Weight | 1.1 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 92) and one deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel with wheel brake.
- Swivelhead with sealed precision ball bearing, grease nippel
- and O-ring seal. In case of extreme conditions
- (like frequent jet cleaning) maintenance by relubrication
- is necessary
JXPC 0801 7100
Swivel castor 80 mm - 200 mm, 80 kg - 250 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 42 mm |
| Height | 105 mm |
| Offset | 38 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9.6 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 108 mm |
| Load capacity | 80 kg |
| Weight | 0.56 kg |
Wheel
- Dark grey Polypropyleene wheel with grey antistatic rubber tyre
- (Performa, Shore A 65 - 70) with one stainless steel deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race
JXPC 0802 7000
Swivel castor 80 mm - 200 mm, 80 kg - 250 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 80 kg |
| Weight | 0.71 kg |
Wheel
- Dark grey Polypropyleene wheel with grey antistatic rubber tyre
- (Performa, Shore A 65 - 70) with one stainless steel deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel. Swivelhead with
- sealed precision ball bearing, grease nippel and O-ring seal.
- In case of extreme conditions (like frequent jet cleaning) maintenance
- by relubrication is necessary
JXPC 0802 7000/B
Swivel castor with wheel locking brake 80 mm - 200 mm, 80 kg - 250 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 80 kg |
| Weight | 0.86 kg |
Wheel
- Dark grey Polypropyleene wheel with grey antistatic rubber tyre
- (Performa, Shore A 65 - 70) with one stainless steel deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel with wheel brake.
- Swivelhead with sealed precision ball bearing, grease nippel
- and O-ring seal. In case of extreme conditions
- (like frequent jet cleaning) maintenance by relubrication
- is necessary
JXPC 0805 7000
Swivel castor 80 mm - 125 mm, 80 kg - 150 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 42 mm |
| Height | 105 mm |
| Offset | 38 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 108 mm |
| Load capacity | 80 kg |
| Weight | 0.57 kg |
Wheel
- Dark grey Polypropyleene wheel with grey antistatic rubber tyre
- (Performa, Shore A 65 - 70) with one stainless steel deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race
